Haberler Technical Pages ESP32-C3-LCD Kit User Manual Published

18.Aug.2023

This user guide will help you get started with the ESP32-C3-LCD kit and will also provide more detailed information.

What is ESP32-C3-LCD?

ESP32-C3-LCDkit is a development board. It is used to evaluate and verify the implementation of the ESP32-C3 display. And it consists of motherboard and sub-board.

ESP32-C3-LCDkit Block Diagram

ESP32-C3-LCDkit is an evaluation development board based on ESP32-C3 with SPI interface display. It also has an integrated rotary encoder switch and has screen interaction. Thanks to its low cost, low power consumption and high performance, the ESP32-C3 meets basic GUI interaction needs and gains ground in scenarios with small screen sizes.

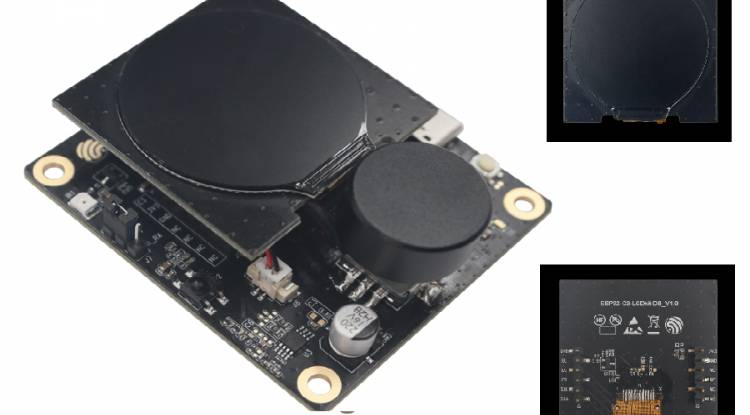

ESP32-C3-LCDkit with ESP32-C3-MINI-1 Module

The key features of the card are listed below:

Embedded Module: ESP1-C4-MINI-400 module with 32MB flash and 3KB SRAM

The ESP32-C3-LCDkit_DB sub-board supports 240,240" LCD display with SPI interface and 1x28 resolution. The driver chip used for this display is GC9A01.

Rotary Encoder Switch: Key switches and 360° rotation for on-screen GUI control

Infrared module: Infrared transmitter and infrared receiver for infrared wireless control

Audio: Built-in audio amplifier and speaker for audio playback

USB: USB Type-C download/debug

For detailed information: https://docs.espressif.com/projects/espressif-esp-dev-kits/en/latest/esp32c3/esp32-c3-lcdkit/index.html
