16.Feb.2024

Product name: Mini-DOS Microcontroller Oscilloscope Kit


Product model: TJ-56-646
PCB size: 57x34mm
Working voltage: 4-5V
Single chip computer: STC8A8K64S4A12
Screen: 0.96 inch OLED screen-7P, 128x64 resolution
Number of channels: Single channel

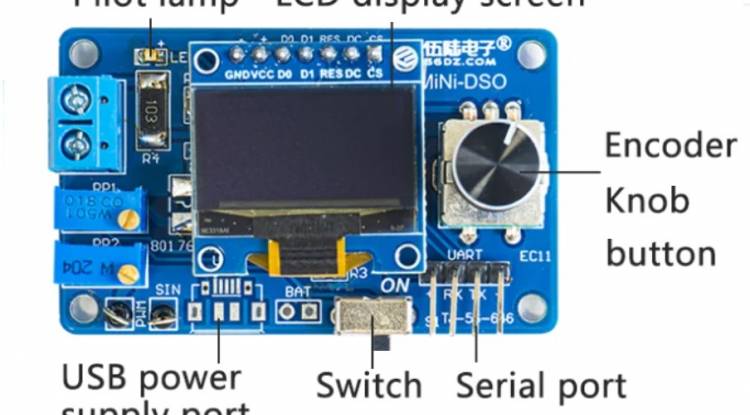

Mini Oscilloscope

Product description:
The Mini-DOS Microcontroller Oscilloscope Kit is an ideal educational tool for electronics enthusiasts. Equipped with the STC8A8K microcontroller, this simple oscilloscope requires a small amount of components and can be easily assembled. Covering basic measurements, this kit is a great option for those who want to understand electronic principles.

Product features:
Simple Installation: It is easy to assemble and requires only a small amount of components.
Educational Purposes: The source code is understandable and allows users to learn and research electronic topics.


Large Screen: 0.96 inch OLED screen delivers clear and readable waveforms.

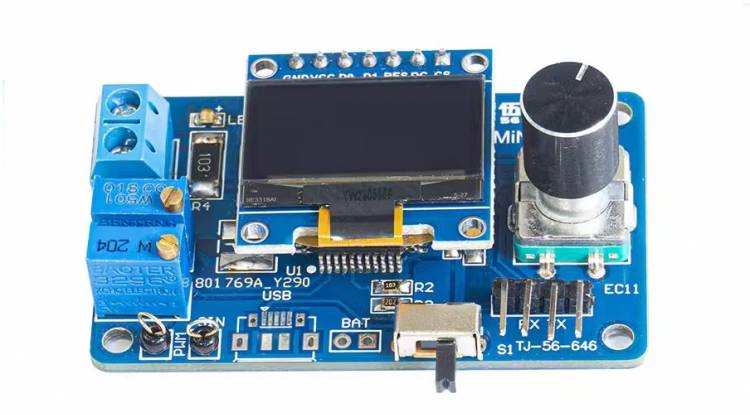

Oscilloscope Kit
Single Channel: Supports one channel, enough to perform basic measurements.


Wide Operating Voltage Range: Operating voltage between 4-5V offers flexible use.

Measurement Parameters: You can make flexible measurements with various parameters such as sec/div, voltage range, sampling level.


Various Triggering Modes: Automatic mode, normal mode and single mode provide solutions suitable for different application scenarios.


Indicator Light: There is an indicator light that shows that sampling is active.

Saving Settings: You can save your settings and easily restore them on subsequent uses.

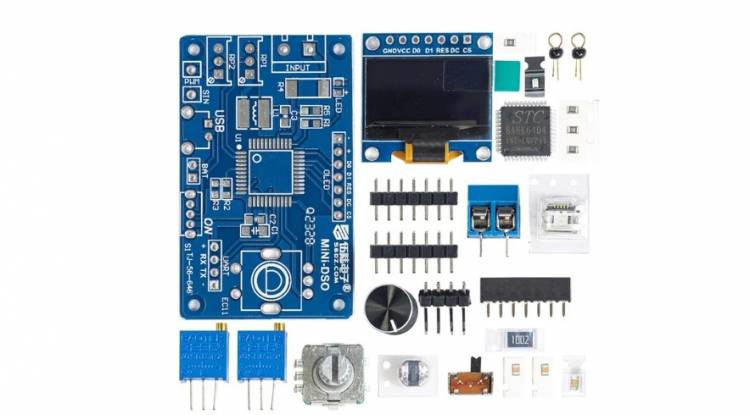

Oscilloscope Kit DIY

The Mini-DOS Microcontroller Oscilloscope Kit is designed to support your electronics learning process and help you understand basic oscilloscope principles. It is a perfect option for both educational use and as a functional tool in your hobby projects.

Product link:Mini DOS LCD Oscilloscope kit STC8K8A
