27.Feb.2024
Texas Instruments' ADS1115 is a 16-bit analog-to-digital converter (ADC) IC that enables high-fidelity conversion of sensitive analog signals to digital data. This IC offers low power consumption, high accuracy and ease of use in a variety of applications. Here are the key features of ADS1115:

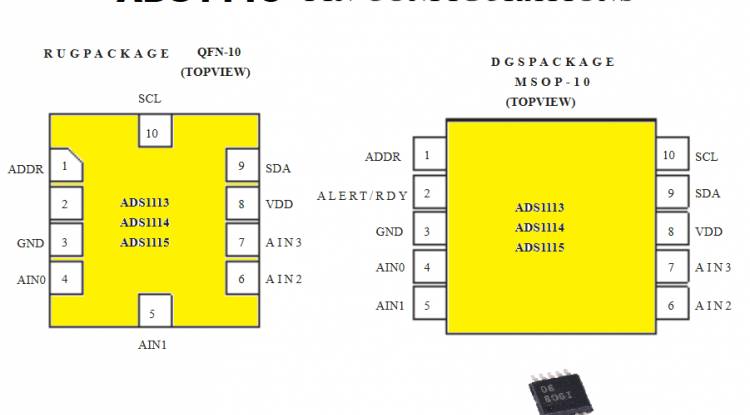

1. Analog Input Channels: ADS1115 has four single-end or two differential analog input channels.
These channels can receive analog signals from various sensors or external sources. Each channel has 16-bit resolution, providing high-accuracy measurements.
2. Programmable Gain Settings: Integrated has the ability to programmably adjust the gain level of analog input signals. This is invaluable for adapting to different application requirements. Gain settings can range from 2/3x to 16x.
3. Internal Reference Voltage: ADS1115 provides an internal reference voltage. This ensures the sensitivity of the integrated circuit without the need for an external reference voltage. The internal reference voltage improves the accuracy of the IC and can be disabled or an external reference used.
4. Low Power Consumption: This IC is designed with low power consumption, making it suitable for portable devices or battery-backed applications. In standby mode, it consumes only microampere level power, which saves power.

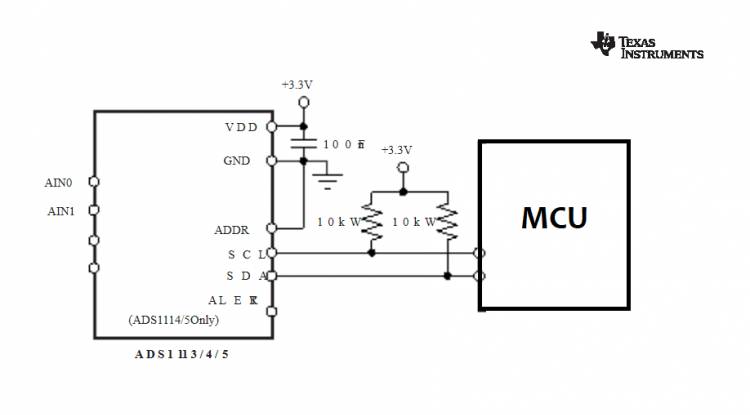

5. I2C Interface:ADS1115 connects to microcontrollers using the I2C (Inter-Integrated Circuit) series communication protocol.
This allows the IC to be easily integrated with a range of microcontrollers and other I2C compatible devices.
ADS1115 is used in industrial control systems, medical devices, sensor interfaces, smart energy management and many other application areas. Thanks to its features that provide high accuracy, low power consumption and flexibility, it is an ideal solution for many applications that require precise measurement.
These features enable the ADS1115 to have a wide range of uses and make it preferred in many areas such as industrial, medical, automation and portable devices.
Scope of application
ADS1115 has a wide range of applications and can be used in various industries and projects. Here are some application areas where ADS1115 can be used:
1. Industrial Automation: Can be used in industrial sensor interfaces and data acquisition systems. It enables the precise conversion of data from analog sensors into digital data.
2. Medical Devices: Ideal for integration with sensors that require precise measurement in applications such as medical measurement devices and medical imaging systems.
3. Portable Devices: Thanks to its low power consumption and compact size, it can be used in battery-powered or portable devices. For example, it is a suitable solution for portable health monitoring devices or portable measuring devices.
4. Smart Home Systems: In home automation applications, it can be used for data collection and control with various sensors (e.g. temperature, humidity, light sensors).
5. Energy Management: It can be used in energy production and storage systems such as solar panels, wind turbines or battery management systems. It enables digital processing and control of analog data.
6. Automotive Industry: Can be used for in-vehicle sensors and control systems. For example, it is ideal for applications such as interior temperature sensors, fuel level sensors.
7. Aerospace Industry: It can be used in applications such as precision measuring devices, flight control systems and space research equipment.
A wide range of applications and flexibility of the ADS1115 enable it to be used in a variety of industries and projects. High accuracy, low power consumption and compact size are features that make it preferred in many different scenarios.
