ADC0831 (Analog-to-Digital Converter), one of the basic components of the electronics world, is a critical integrated circuit used to convert analog signals to digital. ADC0831 plays an important role in many application areas.
ADC0831 is an A/D converter that converts analog signals to digital. It is used to convert real-world physical signals (e.g. heat, sound, light) into digital data that can be processed by microcontrollers, computers and other digital systems. The ADC0831 can convert analog voltage signals to 8-bit digital data.
Features and Working Principle
The ADC0831 samples incoming voltage signals via a single analog input channel. The sampling process involves measuring the analog signal at fixed intervals. These samples go to the converter inside the ADC0831, resulting in a digital output. This output can be connected to microcontrollers, FPGAs or other digital devices.
ADC0831 has important features such as high resolution, low power consumption and fast conversion speeds. These features make the ADC0831 an ideal choice for many applications.
Scope of application
ADC0831 is used in many electronic devices and systems. Some example application areas:
1. Sensor Interface: ADC0831 can be integrated with sensors used to measure temperature, pressure, humidity and other physical variables. In this way, environmental data can be converted into digital data and processed by digital devices.
2. Data Acquisition Systems: ADC0831 is used to record analog data digitally. This is a common practice in data acquisition systems and data logging devices.
3. Medical Devices: In medical devices, analog-to-digital converters such as ADC0831 are used to measure and diagnose body signals.
4. Automation and Control Systems: In industrial automation and control systems, ADC0831 is widely used to process analog input signals. It is important for making precise measurements in industrial applications.
The ADC0831 can be used for automation, medical, data acquisition and many other industrial applications.
ADC0831 with differential input, conversion time to analog serial data is 32 µs. This means 250 kHz offline frequency.
DO->Data output TriState "-. When the "Clock"-->received from CS drops to "0", Analog--->Digital conversion starts on the side.

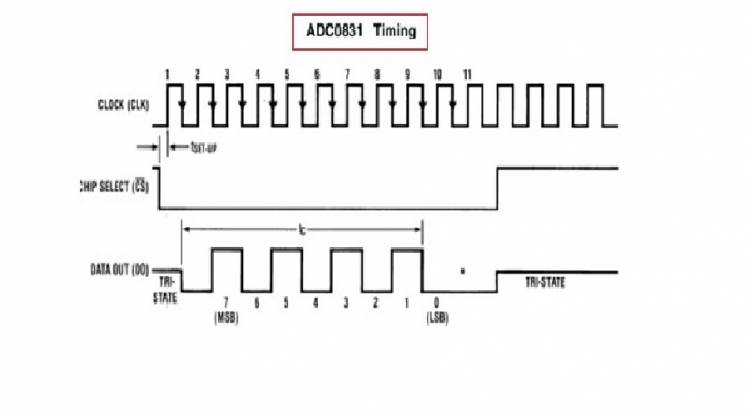

As in the picture; first- "1.clock" is the 8-bit data regime on the falling edge. The second clock is given to the MSB bit output of the 8-bit data. In the following hours, 8-bit data output is completed until the LSB bit.
